HOT RODS CONNECTING ROD

Heavy-duty OE replacement connecting rods

Certified 8620 AISI steel provides superior strength

Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc

Feature the latest in caged needle roller bearing designs for high rpm longevity

Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm

Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing

Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses

Double honing produces an ultra-round bearing surface for reliability at high rpm

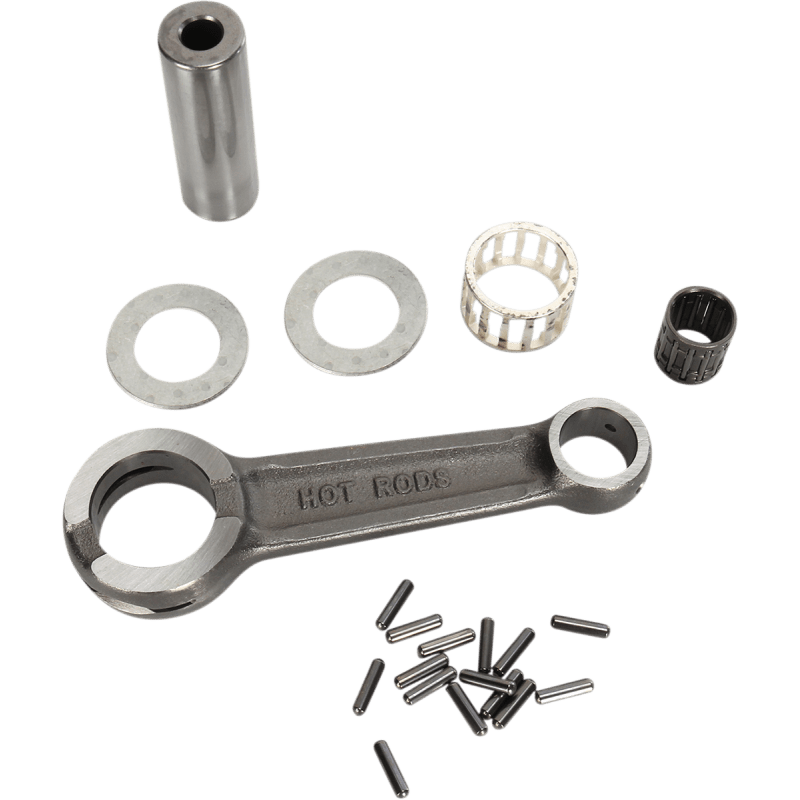

Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers

Compatible with Hot Rods and OE crankshafts

Made in U.S.A.; connecting rod manufactured at Hot Rods Iowa facility
